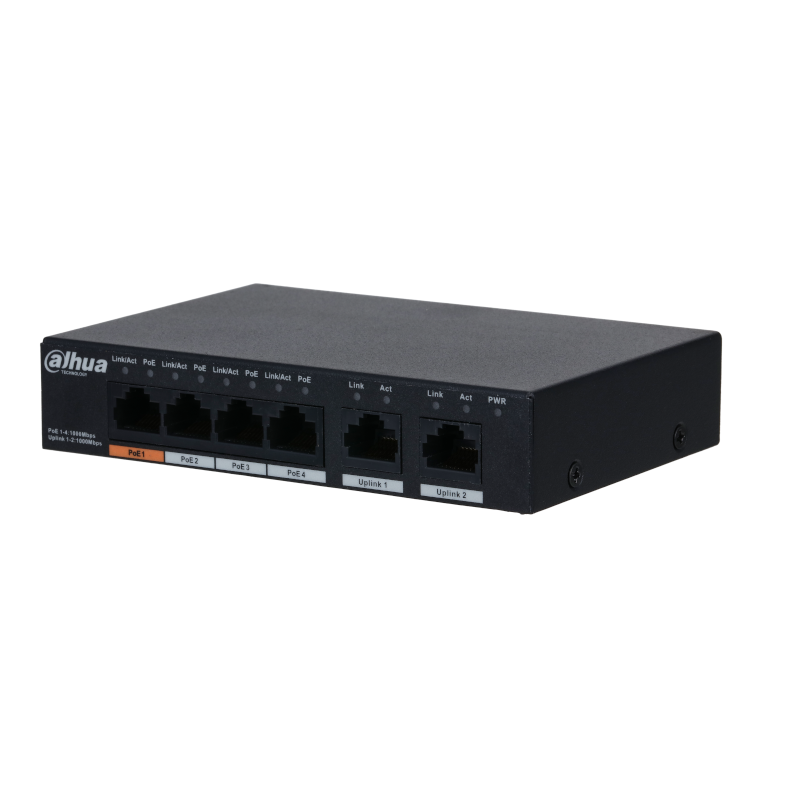

6-Port Unmanaged Desktop Switch with 4-Port PoE PFS3006-4GT-60

Accessiories
Product reference: KSPFS3006-4GT-60
  • * The parameters and datasheets below can only be applied to V2.0 (version 2.0)
  • Intelligent PoE
  • Hi-PoE 60W (orange port)
  • Long distance PoE
  • PoE watchdog
  • All-giga ports

Charakteristikos PFS3006-4GT-60

Read more
At stores prices may vary
Price:
€96.80
€80.00 tax excl.
Favourite
  • In manufacturer warehouse
  • Ask

Product information

6-Port Unmanaged Desktop Switch with 4-Port PoE

Wide working temperature

Hardware Feature

Ethernet Port

Port1-4: 4 × RJ-45 10/100/1000M (PoE)

Port5-6: 2 × RJ-45 10/100/1000M (uplink)

PoE Power Consumption

Port1≤ 60 W (Hi-PoE)

Port2-4 ≤30 W

Total≤60 W

Power Consumption

Idling: 0.96 W

Full load: 60 W

Standard

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

PoE

PoE Protocol

IEEE802.3af/ IEEE802.3at/ Hi-PoE

Power Supply Pin

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance

250 m long distance PoE transmission

PoE Power Management

Yes

PoE Watchdog

Yes

Performance

Switching Capacity

14 Gbps

Packet Forwarding Rate

8.928 Mbps

Packet Buffer Memory

1 Mbit

MAC Address Table

2 K

Flow Control

Enable by default

Working Temperature

–10 °C to 55 °C (+14°F to +131°F)

Application Humidity

5%–95% (RH)

General

Power Input

48 V - 57 V DC

Lighting Protection

Common mode: 4 kV

Differential mode: 2 kV

ESD Protection

Air discharge: 8 kV

Contact discharge: 6 kV

Wall-mount Installation

Yes

Anti-theft Lock Hole

Yes

Weight

0.30 kg (0.64 lb)

Dimension

130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02")

Features

Incoming Bandwidth 10/100/1000
SFP ports Nėra
Ports 8
PoE ports 4

Sertificates

Manufacturer

Dahua Technology is a world-leading video-centric AIoT solution and service provider. With its ‘Dahua Think#’ corporate strategy, Dahua Technology focuses on two core businesses: City and Enterprise. The company firmly strengthens its technological strategies that include AloT and IoT digital intelligence platforms, comprehensively promoting the digital intelligence upgrading of cities and enterprises based on customer needs, and creating more value for the digital-intelligent transformation of various industries.
