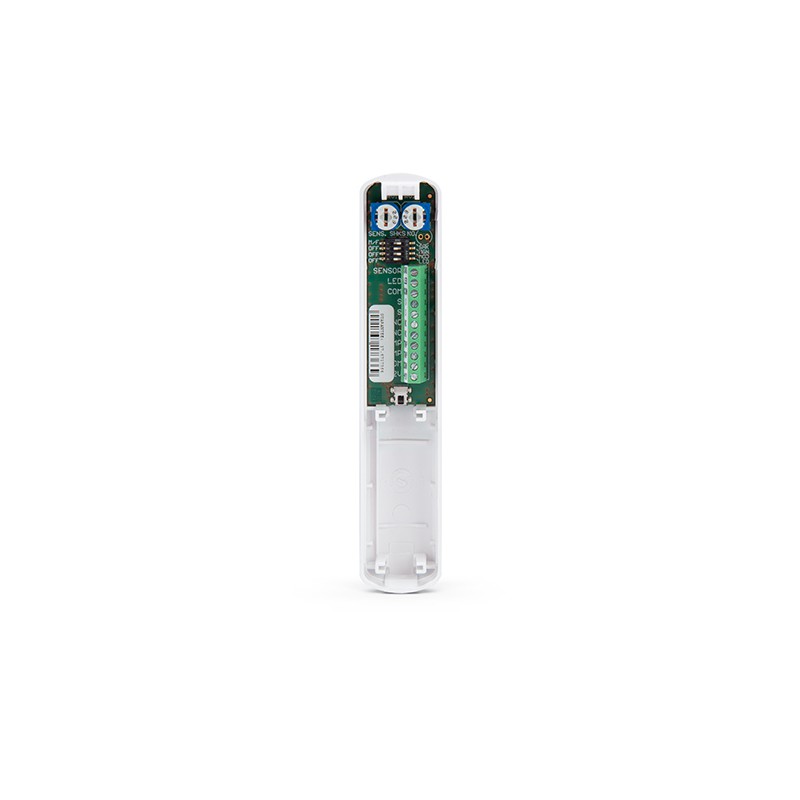

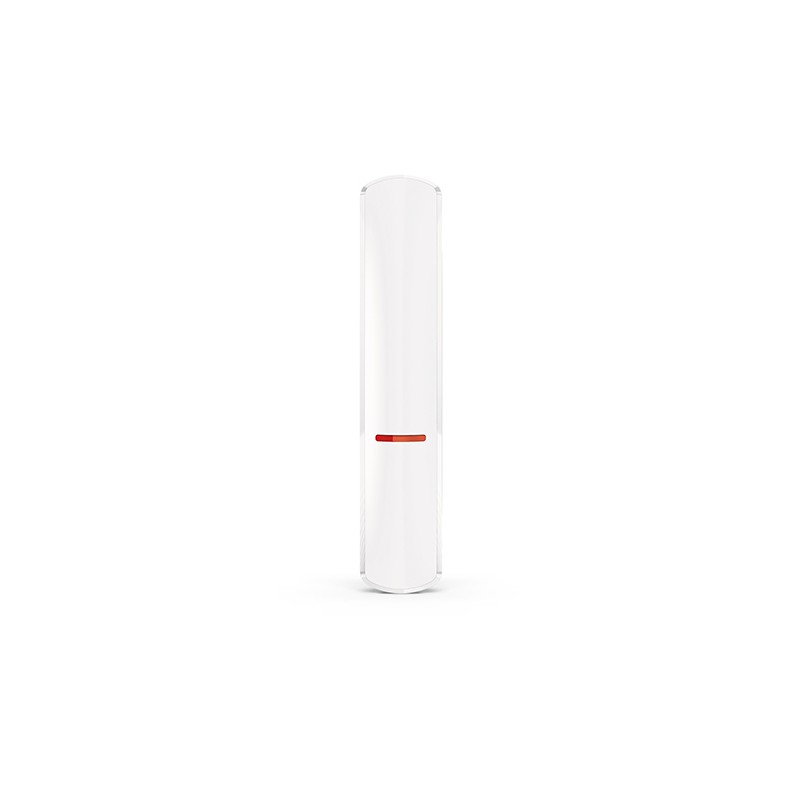

XD-2 Multipurpose detector

Detectors

Product reference: DAXD-2

LED indicator
remote enabling/disabling of LED indicator
supply voltage control
tamper protection against enclosure opening and removal from mounting surface
2 magnets included (for surface and flush mounting)

At stores prices may vary

Price:

€20.57

€17.00 tax excl.

Favourite

In manufacturer warehouse
Delivery in 4-8 business days
Ask

Product information

XD-2 is a multipurpose wired detector, which can operate with any alarm control panel. XD-2 can work as: magnetic contact, shock detector, shock detector and magnetic contact, and water flood detector.

Operating temperature range

-10°C...+55°C

Standby mode current consumption

12,5 mA

Max. current consumption

14 mA

Weight

46 g

Maximum humidity

93±3%

Environmental class according to EN50130-5

Detector enclosure dimensions

20 x 102 x 23 mm

Complied with standards

EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-2-6

Security grade according to EN50131-2-6

Grade 2

Magnet enclosure dimensions - surface mounting

15 x 52 x 6 mm

Magnet pad dimensions - surface mounting

15 x 52 x 6 mm

Magnet pad dimensions - recessed mounting

ø10 x 28 mm

Maximum gap - surface magnet (magnetic contact)

15 mm

Maximum gap - recessed magnet (magnetic contact)

19 mm

Tamper outputs (NC relay, resistive load)

40 mA / 24 V DC

Power supply voltage (±25%)

12 V DC

S alarm outputs (NC relay, resistive load)

40 mA / 24 V DC

Relay contact resistance (NC alarm output)

26 Ω

Relay contact resistance (S alarm output)

26 Ω

SNS input sensitivity (NC type detector)

150 ms

SNS input sensitivity (flood probe)

1 s

Detection range (depending on surface type) (shock detector)

up to 3 m

NC alarm outputs (NC relay, resistive load)

40 mA / 24 V DC
