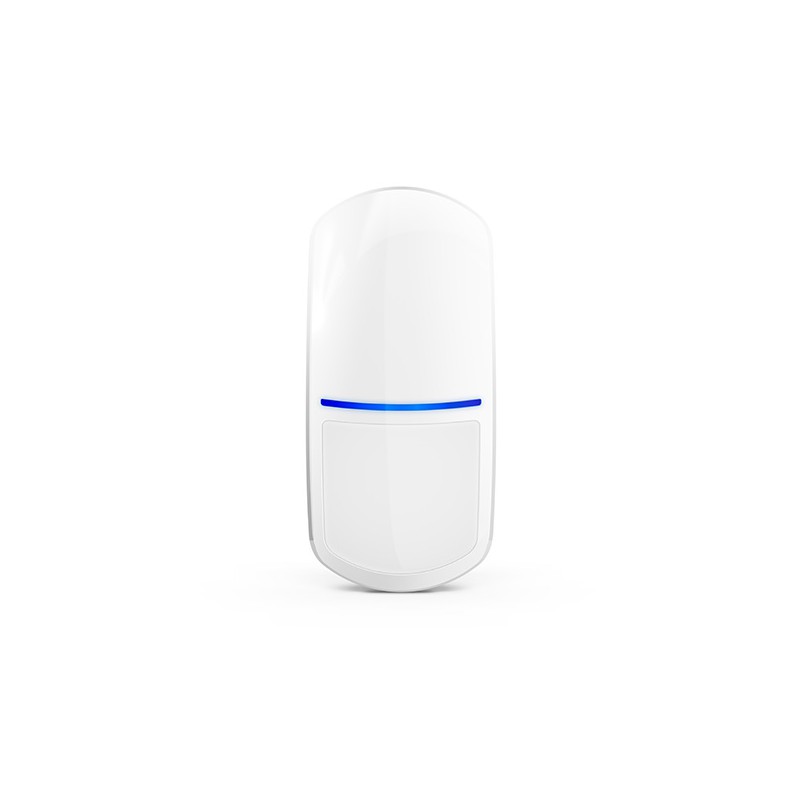

PIR motion detector SLIM-PIR

Detectors

Product reference: DASLIM-PIR

SLIM-PIR detects motion in the protected area.

At stores prices may vary

Price:

€13.50

€11.16 tax excl.

Product information

PIR motion detector SLIM-PIR features:

certificate of compliance with the EN 50131 requirements for Grade 2
motion detection using passive infrared (PIR) sensor
adjustable sensitivity of detection
digital motion detection algorithm
digital temperature compensation
wide-angle lens, designed specifically for the SLIM LINE detectors
option to replace the wide-angle lens with a curtain (CT-CL2) or long-range (LR-CL2) one
built-in end-of-line resistors (2EOL: 2 x 1.1 kΩ)
LED indicator
selectable color of the LED indicator (4 colors available)
LED indicator remote enable/disable
supervision of motion detection and supply voltage circuit
tamper protection against opening of enclosure

Specifications:

Supply voltage	12 V DC
Detected target velocity	0,3...3 m/s
Operating temperature range	-10°C...+55°C
Recommended mounting height	2,4 m
Standby mode current consumption	8 mA
Max. current consumption	23 mA
Weight	100 g
Maximum humidity	93±3%
Dimensions	62 x 137 x 42 mm
Environmental class according to EN50130-5	II
Alarm signaling time	2 s
Complied with standards	EN 50131-1, EN 50131-2-2, EN 50130-4, EN 50130-5
EOL resistors	2 x 1,1 kΩ
Warm-up period	30 s
Security grade according to EN50131-2-2	Grade 2
Detection area	15 m x 20 m, 90° (montaż na 2,4 m)
Alarm outputs (NC relay, resistive load)	40 mA / 24 V DC
Tamper outputs (NC)	100 mA / 30 V DC
Relay contact resistance (alarm output)	26 Ω
Permissible installation height	up to 4 m

Pet imune
