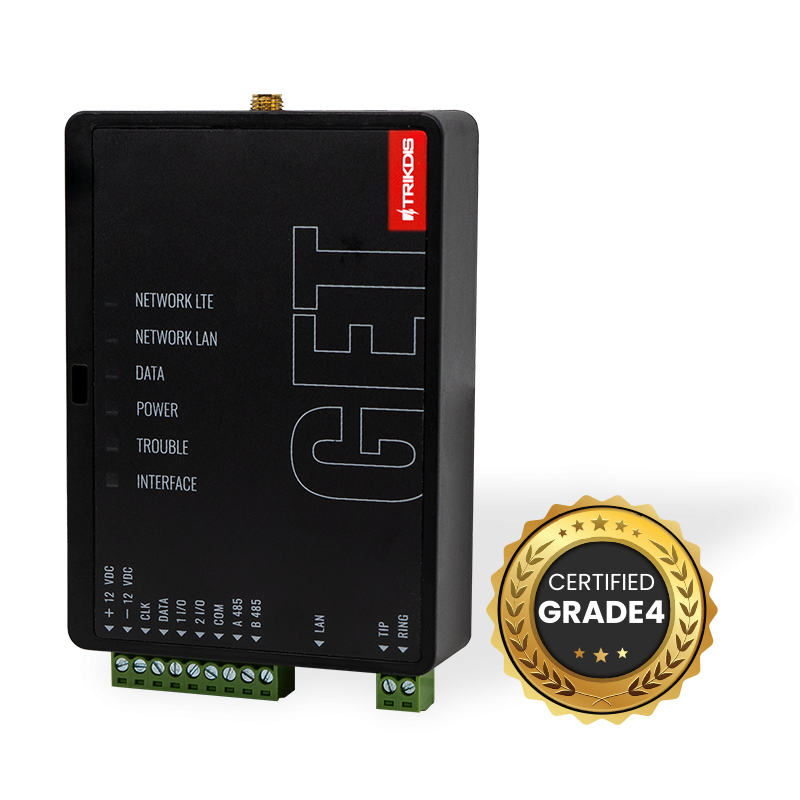

Cellular and Ethernet Communicator GET 4G with antenna

Product reference: PCGETLAN4G/ANT

GET Connected,Stay Protected.

Cellular and Ethernet communicator in one.

Elevate your security game with our Multi-Platform Event Reporting solution! Seamlessly connect to control panel via Serial Bus or Landline or both. Enjoy reliable communication with automatic LTE/LAN switch and back-up channels. Integrate effortlessly with the Protegus 2 app for push notifications, remote control, and more. Practical setup, controllable I/O, and monitoring station readiness make it a must-have for a connected and secure environment. Choose future-proof solution!

At stores prices may vary

Price:

€196.85

€162.69 tax excl.

Favourite

In manufacturer warehouse
Delivery in 4-8 business days
Ask

Product information

Multi-Platform Event Reporting. Can send events to multiple receivers, including TRIKDIS software/hardware and SIA DC-09 receivers.

Reliable Communication. Automatic LTE/LAN Switch & Back-Up Channel with Connection Supervision for Reliable Event Delivery.

Serial Bus or Landline Options. Connect your security panel via serial bus or landline dialer (TIP RING contacts).

User-Friendly App Integration. Works seamlessly with the Protegus 2 app, providing “push” and sound notifications, remote system arm/disarm and control of connected devices.

Practical Configuration. Settings can be saved to file and quickly written to other communicators, and the device can be remotely configured and updated with firmware.

Sends events to monitoring station receiver:

Sends events to TRIKDIS software or hardware receivers that work with any monitoring software.
Or can send event messages to SIA DC-09 receivers.
Connection supervision by polling to IP receiver every 30 seconds (or by user defined period).
Backup channel or communication technology (such as LTE or LAN), that will be used if connection with the primary channel is lost.
When Protegus service is enabled, events are first delivered to CMS, and only then are sent to app users.

Works with Protegus 2 app:

“Push” and special sound notifications informing about events.
Remote system Arm/Disarm.
Remote control of connected devices (lights, gates, ventilation systems, heating, sprinklers, etc.).
Different user rights for administrator, installer and user.

Controllable outputs and inputs:

2 I/O, selectable type

Practical setup:

Flexible Integration. Connect with ease to your control panel, giving you the freedom to choose the connection method via TIP RING or Serial BUS, choose the option that suits your needs.
Settings can be saved to file and quickly written to other communicators.
Two access levels for configuring the device for CMS administrator and for installer.
Remote configuration and firmware updates.

Specifications:

Parameter	Description
Dual purpose terminals [IN/OUT]	2, can be set as either NC; NO; NC/EOL; NO/EOL; NC/DEOL; NO/DEOL (2,2 kΩ) type inputs or open collector (OC) type outputs with current up to 0,15 A, 30 VDC max. An additional 32 inputs/outputs can be added with iO-8 expanders.
Modem EG915U-EU (Europe)	LTE FDD: B1/B3/B5/B7/B8/B20/B28 GSM: B2/B3/B5/B8
Modem BG95-M5 (Cat M1)	LTE-FDD: B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/ B19/ B20/ B25/ B26/ B27/ B28/ B66/ B85 EGPRS: 850/900/1800/1900 MHz
Power supply voltage	10-18 V DC
Current consumption	175 mA
Transmission protocols	TRK, DC-09_2007, DC-09_2012
Message encryption	AES 128
Buffer memory capacity	60 events
Changing settings	With Protegus 2 app remotely or TrikdisConfig PC program remotely or locally via USB-С port
Operating environment	Temperature from -10 °C to 50 °C, relative humidity – up to 80% at +20 °C
Communicator dimensions	113 x 70 x 25 mm
Weight	110 g

Features

Type

GSM
