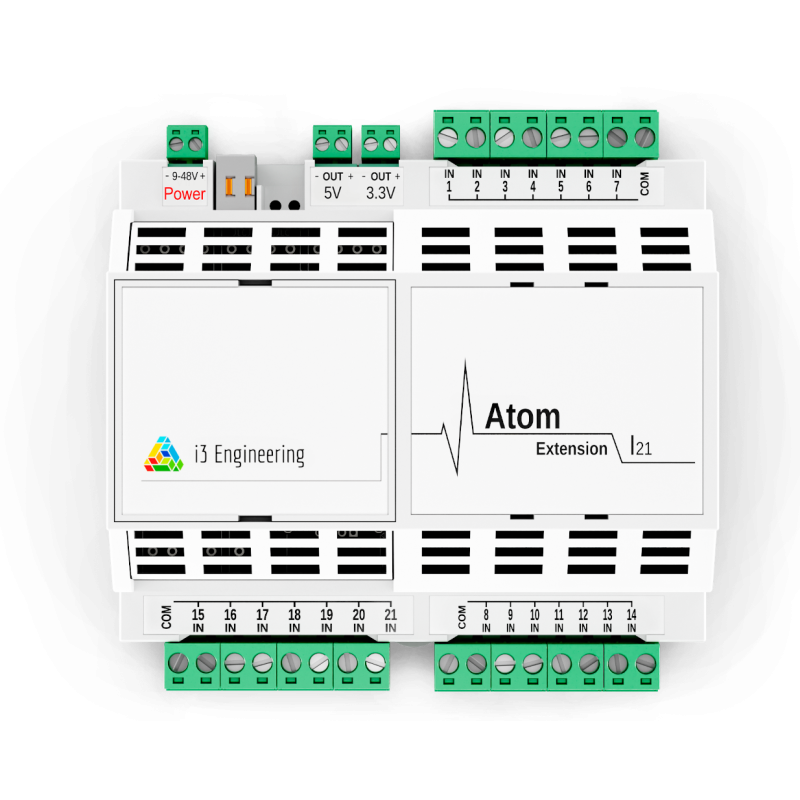

Extension module Atom I21

i3Engineering

Product reference: EP6UAtomI21

Extension module Atom I21 is designed to increase the number of input ports in the system.

At stores prices may vary

Price:

€402.93

€333.00 tax excl.

Favourite

In manufacturer warehouse
Delivery in 4-8 business days
Ask

Product information

6U Extension module Atom I21 features:

CAN bus ensures synchronized operation of all Atom series devices
5V and 3.3V connectors for sensors power supply
21 x inputs with optocoupler mode for connecting switches and sensors

Technical Specifications:

Inputs 1-21
The number of inputs with optocoupler mode	21
Voltage range of input signals	0-12V

Power supply

Device power supply voltage (with protection against reverse polarity connection) 9 - 48V DC
Output voltage to power the sensors 3.3V (200mА), 5V (200mА)
Consumption (max) 15W

Other

Mounting type DIN rail (EN 60715)
Width, DIN units 6 DIN modules
HxWxL 59х88х105mm
Type of connectors / Recommended wire cross section inputs w/ screws, detachable / 2,5mm2

SERIES ATOM EXTENSION 6U COMPARISON:

Module	IN	OUT	QUANTITIES AND TYPES OF OUTPUTS
R4DD8	-	12	4 relays 8 dim	5A 250V AC / 30V DC 0–48V DC / 5A
R8	-	8	2 relays 6 relays	5A 250V AC / 30V DC 16A 250V AC
R6A12	-	18	6 relays 12 SSR	5A 250V AC / 30V DC 100W 250V AC
AD8A9	-	17	3 SSR 6 SSR 8 dim	100W 250V AC 80W 250V AC 100W 250V AC
R4AD6	-	10	4 relays 6 dim	5A 250V AC / 30V DC 180–250V AC / 300W
I21	21	-	-	-
