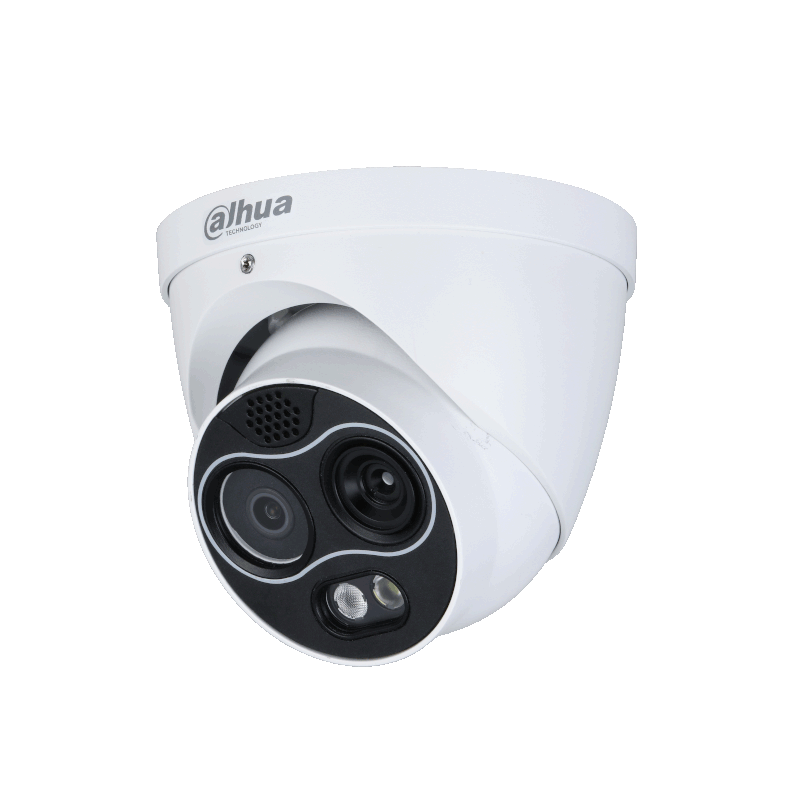

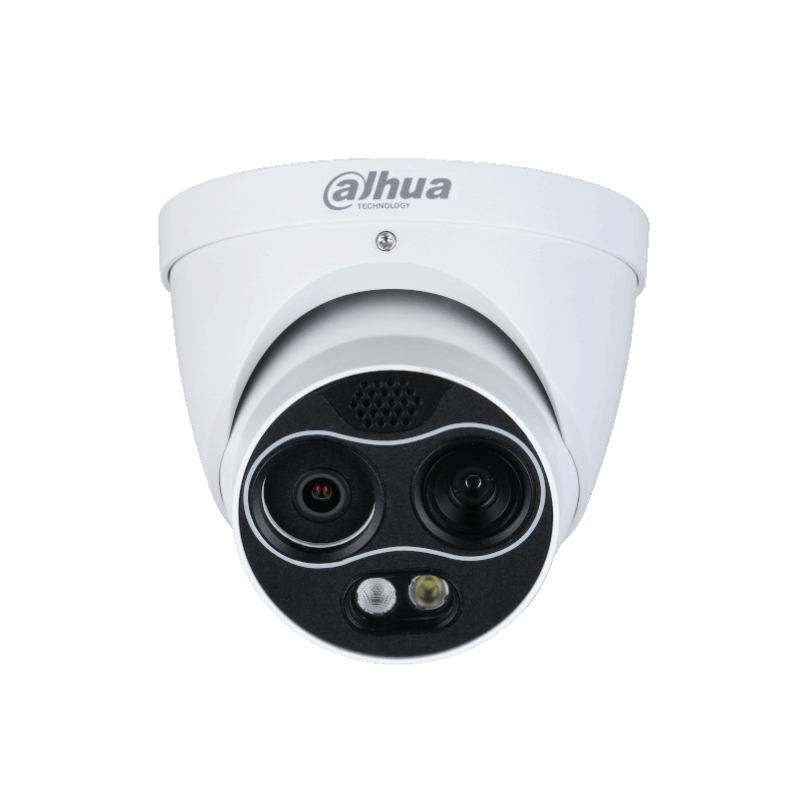

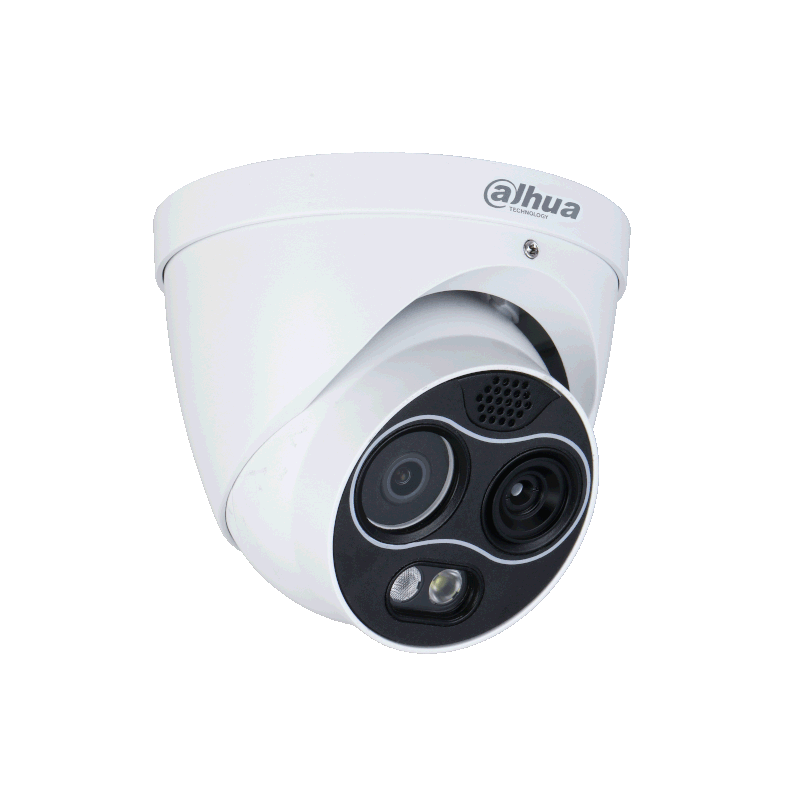

TPC-DF1241-TB2F2-S2 4MP Thermal Network Mini Hybrid Eyeball Camera

IP Cameras

Product reference: CATPCDF1241TB2F2S2

Vanadium oxide uncooled focal plane detector.
4 Megapixel progressive scan CMOS.
Supports fire detection, smoking detection, tripwire, intrusion, call detection, target filtering, and alarm linkages.
Temperature measurement range of –20 °C to +550 °C
Built-in white light and speaker for sound and light alarm.
Built-in IR illuminator.
Hybrid fusion.
12 VDC + 20% wide voltage and PoE power supply.
IP67 rated.
Small and elegant design.

At stores prices may vary

Price:

€918.39

€759.00 tax excl.

Favourite

In manufacturer warehouse
Ask

Product information

WizSense Thermal Network Eyeball Camera TPC-DF1241-TB2F2-S2.

Intelligence

General Intelligence: Tripwire, Intrusion

Advanced Intelligence:

Fire Detection & Alarm
Cold & Hot Spot Trace
Human & Vehicle Classification
Smoking Detection
Call Detection

Specifications:

General
Appearance																		Thermal Network Mini Hybrid Eyeball Camera
Type																		Radiometry
Thermal
Detector Type																		Vanadium oxide uncooled focal plane detector
Effective Pixels																		256 (H) × 192 (V)
Pixel Pitch																		12 μm
Spectral Range																		8 μm–14 μm
Sensitivity (NETD)																		≤40mK@f/1.0
Focal Length																		2 mm
Field of View																		H: 87.8°;V: 63.8°
Thermal Focus Control																		Fixed-focal
Close Focus Distance																		0.3 m (0.98 ft)
Detection Distance																		Vehicle: 256 m (841.24 ft) Human: 83 m (273.40 ft)
Recognition Distance																		Vehicle: 63 m (206.34 ft) Human: 21 m (70.30 ft)
Identification Distance																		Vehicle: 32 m (104.15 ft) Human: 11 m (35.15 ft)
Digital Zoom																		16 levels
Thermal AGC																		Auto/Manual
Thermal Noise Reduction																		2D NR/3D NR
Image Flip																		0°; 90°; 180°; 270°/Mirror
Color Palettes																		18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)
Temperature Measurement Range																		High temperature mode: 0 °C (+32 °F) to +550 °C (+1022 °F) Low temperature mode: –20 °C (–4 °F) to +150 °C (+302 °F)
Temperature Measurement Distance (Min.)																		0.5 m (1.64 ft)
Temperature Measurement Distance (Max.)																		2.5 m (8.20 ft)
Temperature Measurement Accuracy																		Max. (±2 ℃, ±2%); operating temperature: –20 ℃ (–4 °F) to +50 ℃ (+122 °F)
Temperature Measurement Mode																		Spot: 12 Line: 12 Area: 12 Supports 12 rules simultaneously
Visible
Image Sensor																		1/2.7" CMOS
Max. Resolution																		2336 (H) × 1752 (V)
Pixel																		4 MP
Horizontal Definition																		≥ 1600 TVL
Min. Illumination																		Color: 0.05 lux Black & white: 0.005 lux 0 lux (IR on)
Visible AGC																		Auto/Manual
Visible Noise Reduction																		2D NR/3D NR
S/N Ratio																		≥ 55 dB
White Balance																		Auto; manual; indoor; outdoor; tracking; street lamp; natural
Defog																		Electronic defog
Electronic Shutter Speed																		1 s–1/30,000 s (auto/manual)
BLC																		Yes
WDR																		DWDR
HLC																		Yes
Day/Night																		Auto (ICR)/Color/B/W
Iris Control																		Fixed
Image Flip																		0°; 90°; 180°; 270°/Mirror
Exposure Compensation																		Yes
Visible Focus Control																		Fixed-focal
Focal Length																		2 mm
Field of View																		H: 94° V: 72° D: 116°
Close Focus Distance																		0.3 m (0.98 ft)
Aperture																		F2.2
Illuminator On/Off Control																		Auto/Manual
Illumination Distance																		30 m (98.43 ft)
Audio and Video
Video Compression																		H.265; H.264; H.264H
Resolution																		Thermal: Main stream: 1280 × 960; 1024 × 768; 640 × 480; 256 × 192; 1280 × 960 (default); Sub stream: 640 × 480; 256 × 192; 400 × 300; 256 × 192 (default); Visible: Main stream: 4MP (2336 × 1752); 1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576); 4MP (2336 × 1752) (default); Sub stream: 720P (1280 × 720); D1 (704 × 576); CIF (352 × 288) (default)
Video Frame Rate																		Thermal: Main stream: 1 fps–25 fps, 25 fps by default; Sub stream: 1 fps–25 fps, 15 fps by default; Visible: Main stream: 1 fps–25 fps, 25 fps by default; Sub stream: 1 fps–25 fps, 15 fps by default;
Audio Compression																		G.711a; G.711mu; PCM
Image Encoding Format																		JPEG
Function
Two-way Audio																		Yes
Sound and Light Alarm																		Yes
Network Protocol																		HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP
Region of Interest (RoI)																		Yes
Storage																		Micro SD card (256 GB, hot swapping)
Interoperability																		ONVIF; CGI; Dahua SDK
Browser																		IE: IE9 and later (Edge is not supported) Chrome: 42 and earlier Firefox: 42 and earlier
User/Host																		Up to 10 (total bandwidth: 100 MB)
Security																		Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
User Management																		Up to 10 users; supports multi-level user permissions (2 levels): management group and user group
Malfunction Detection																		Network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Fusion Mode																		Warm color; cold color; fuse with iron oxide red
PIP																		Yes
Micro SD Card (Max.)																		256 GB
Intelligence
Heat Detection																		Yes
Heat Detection Distance (max)																		25 m (82.02 ft)
Cold/Hot Spot Trace																		Yes
IVS (Perimeter Protection)																		Yes. Supports tripwire and intrusion.
Target Distinction																		Human/Vehicle classification
Smoking Detection																		Yes
Call Detection																		Yes
Port
Network Port																		1 × RJ-45 (10/100 Base-T)
Alarm Input																		1
Alarm Output																		1
Audio Input																		1
Audio Output																		1
RS-485																		1
Power
Power Supply																		12 VDC ± 20%, PoE
Power Consumption																		Basic: <4.5 W (12 VDC, LED off); 4.8 W (PoE) Max: <10.1 W (12 VDC, LED on, heater on); 12.3 W (PoE)
Environment
Operating Temperature																		–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity																		≤ 95%
Storage Temperature																		–30 °C to +70 °C (–22 °F to +158 °F)
Physical Characteristics
Protection																		IP67
Bracket																		Wall mount: PFB203W Ceiling mount: PFA106 + PFB220C Junction box: PFA130-E
Structure
Product Dimensions																		122.2 mm × 122.2 mm × 112 mm (4.81" × 4.81" × 4.41") (L × W × H)
Packaging Dimensions																		155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31") (L × W × H)
Net Weight																		≤ 0.85 kg (1.87 lb)
Gross Weight																		≤ 1 kg (2.20 lb)
Lens																		Included

Features

Color	White
Resolution	4MP
Camera type	Thermo
Camera type	Dome
Product class	LITE
AI functionality	Lite AI
Features	Support MicroSD ≤ 256 GB
