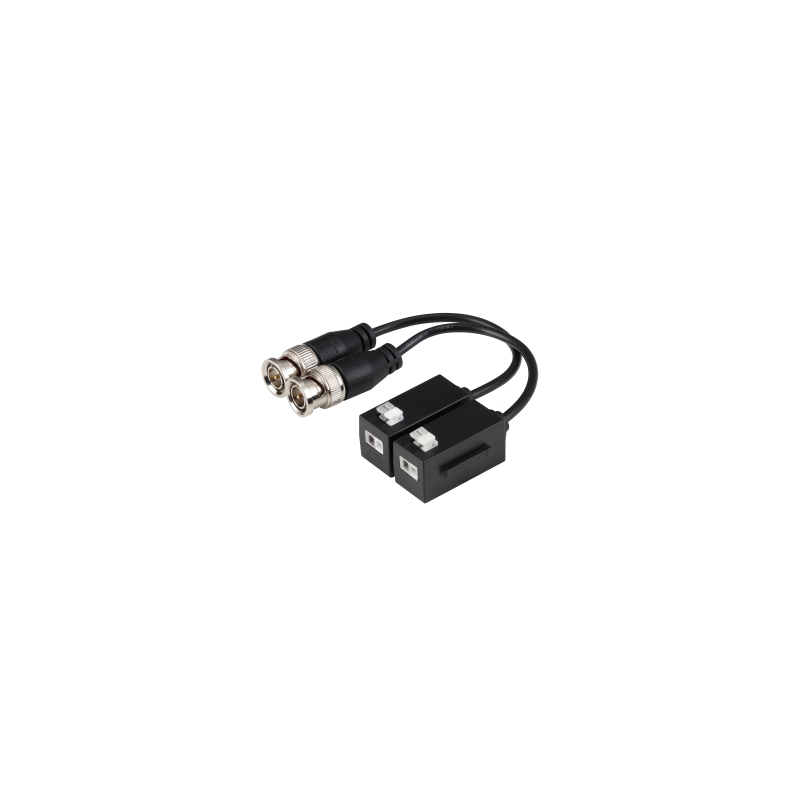

1-CH Passive Video Balun PFM800-4K

Video Signal Transmission

Product reference: VIPFM800-4K

Real-time transmission over UTP CAT5E/6 cable;
Passive, no need for power supply;
Excellent anti-thunder, anti-static and anti-interference capabilities;
Compatible format: HDCVI/TVI/AHD/CVBS;
With female BNC connector, and pluggable screw terminal connections.

At stores prices may vary

Price:

€9.68

€8.00 tax excl.

Favourite

In manufacturer warehouse
Delivery in 4-8 business days
Ask

Product information

1-CH Passive Video Balun

Technical Speciﬁcation

Model

DH-PFM800-4K

Properties

Transmission Signal

1-CH

Network cable Type

UTP CAT5E/6 (material: CU)

Transmission Properties

HDCVI

720P : max.400m

(1312.34ft)

1080P : max.250m

(820.21ft)

4M/5M/4K : max.200m

(656.17ft)

TVI

720P : max.400m

(1312.34ft)

1080P : max.250m

(820.21ft)

4M/5M : max.200m

(656.17ft)

AHD

720P : max.400m

(1312.34ft)

1080P : max.250m

(820.21ft)

4M/5M : max.200m

(656.17ft)

Video Transmission Properties

Coaxial Video Connector

BNC-M

Connection Way

RJ45

Compatible Format

HDCVI/TVI/AHD/CVBS

Resolution

720P/1080P/4MP/5MP/4K

Protection

ESD

1a contact discharge electricity level 3

1b air discharge electricity level 3

Per: IEC61000-4-2

UTP Cable Connector

2KV(different-mode), 4KV(common-mode)

Per: IEC61000-4-5

Impedance

BNC Male Impedance

75 ohms

UTP Cable Impedance

100 ohms

Physical Properties

Weight

40g (0.09lb) (1 pair)

Dimension(LxWxH)

173.8mmx19.5mmx21mm (6.84”x0.77“x0.83”)

Shell

ABS

Color

Black

Environmental

Operating Temperature

-30℃~+70℃(-22℉~+158℉)

Operating Humidity

<95% RH

Storage Temperature

-40℃~+80℃(-40℉~+176℉)
