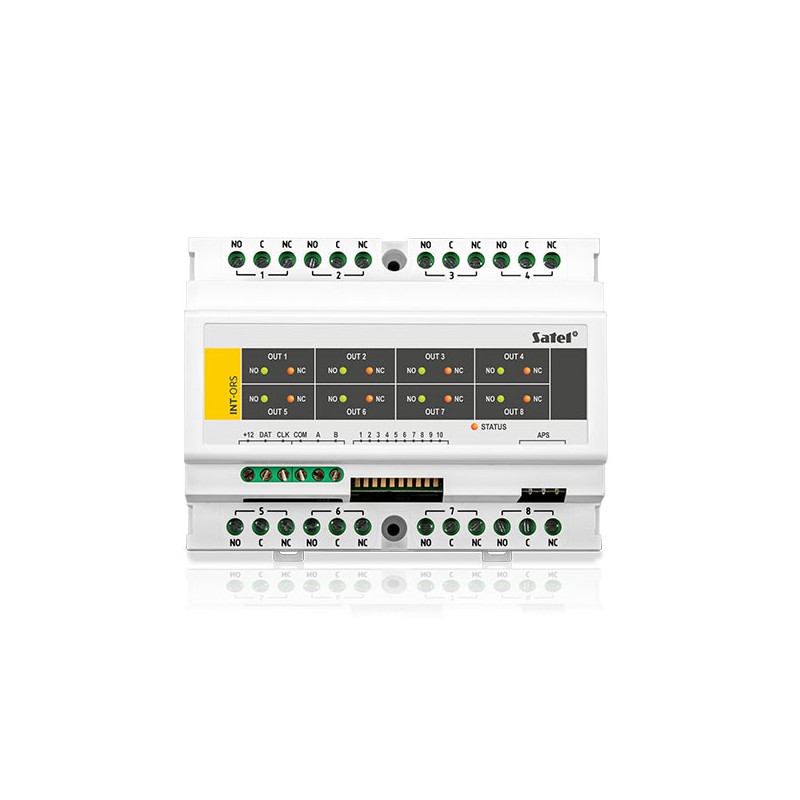

INT-ORS DIN rail compatible outputs expansion module

Centrāles

Preces kods: PCINT-ORS

The INT-ORS module allows for expansion of the INTEGRA/VERSA/PERFECTA and ACCO NET systems by 8 programmable relay outputs.

Lasīt vairāk

Cena veikalā var atšķirties

Cena:

€98,01

€81,00 bez PVN

Saglabāt

In manufacturer warehouse
Piegāde 4-8 d.
Jautājiet

Preces informācija

DIN rail compatible outputs expansion module.

The INT-ORS module allows for expansion of the INTEGRA/VERSA/PERFECTA and ACCO NET systems by 8 programmable relay outputs. It is designed for implementation of direct operation of 230 V devices using control panels of the INTEGRA, INTEGRA Plus, VERSA, VERSA Plus, PERFECTA and PERFECTA-T families. This module is also a great option where the capabilities offered by these panels are to be used to create an automation system. The device can also work with ACCO-NT access control panels. The INT-ORS is designed for mounting on a standard 35 mm DIN rail.

8 relay outputs for direct control of 230 V mains powered appliances
installation directly on 35 mm DIN rail
optical indicators of relay state
cooperation with ACCO NET system (since 1.4 release)

Specifications

Max. number of outputs	8
Supply voltage	12 V DC
Operating temperature range	-10…+55 °C
Standby mode current consumption	35 mA
Max. current consumption	310 mA
Weight	285 g
Maximum humidity	93±3%
Occupied number of 17.5 mm modules	7
Dimensions	122 x 93 x 58 mm
Environmental class according to EN50130-5	II
Relay outputs rating (resistive load)	16 A / 230 V AC
+12 V output rating	2,5 A / 12 V DC
