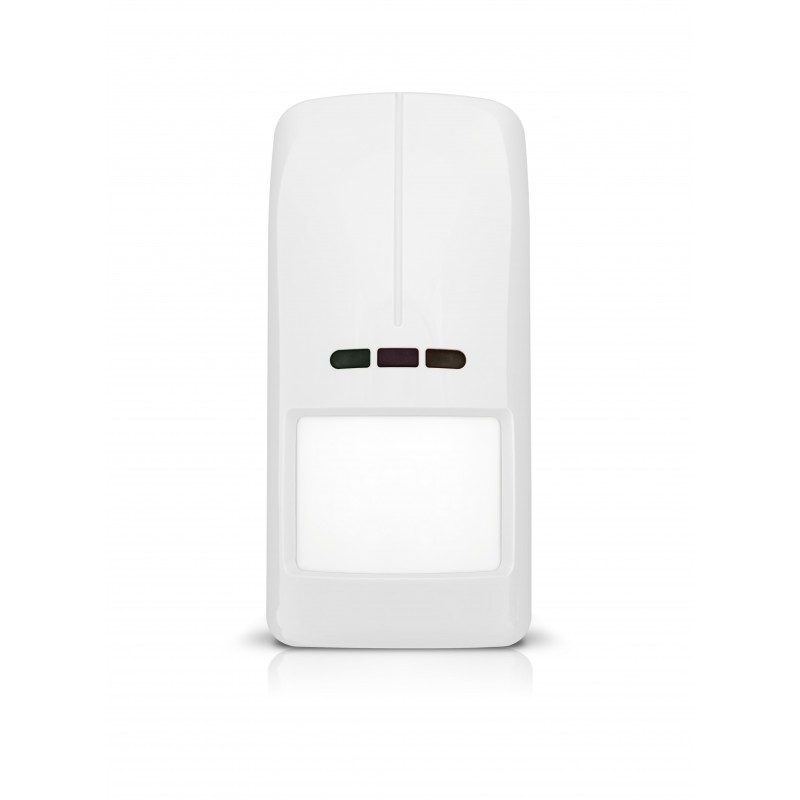

OPAL Plus Outdoor PIR + MW dual technology motion detector

Dubultas tehnoloģijas devēji

Preces kods: DAOPAL PLUS SET

dual technology: PIR and microwave
anti-masking function based on the microwave technology
built-in dusk sensor which allows the detector to be used in automation systems
configuration of the sensitivity of detection paths and dusk sensor using the PCB buttons
built-in receiver of the OPT-1 IR keyfob signal
remote configuration of the sensitivity of detection paths and dusk sensor with the OPT-1 keyfob without having to open the detector enclosure

Lasīt vairāk

Cena veikalā var atšķirties

Cena:

€71,39

€59,00 bez PVN

Saglabāt

In manufacturer warehouse
Piegāde 4-8 d.
Jautājiet

Preces informācija

splash-proof polycarbonate enclosure, IP54 rated
tamper protection against opening and detachment
digital temperature compensation for correct detector operation in -40°C to +55°C temperature range
can be used in adverse weather conditions (rain, snow, fog, strong wind)
high immunity to false alarms because of the use of auto-tuning algorithm
look down creep zone control
small animal immunity option (up to 20 kg)
low power consumption

Supply voltage

12 V DC

Detected target velocity

0,3...3 m/s

Operating temperature range

-40...+55 °C

Recommended mounting height

2,4 m

Standby mode current consumption

15 mA

Max. current consumption

20 mA

Maximum humidity

93±3%

Dimensions

65 x 138 x 58 mm

Environmental class according to EN50130-5

IIIa

Alarm signaling time

2 s

Complied with standards

EN50131-1, EN 50131-2-4, EN50130-4, EN50130-5

Microwave frequency

24 GHz

Security grade according to EN50131-2-4

Grade 2

Warm-up period

40 s

IP code

IP54

Detector weight (without bracket)

176 g

Alarm outputs (NC relay, resistive load)

40 mA / 24 V DC

Tamper outputs (NC)

100 mA / 30 V DC

Anti-masking outputs (NC relay, resistive load)

40 mA / 24 V DC

Relay contact resistance (alarm output)

34 Ω

Relay contact resistance (anti-masking output)

34 Ω

D/N dusk sensor output (OC-type output)

50 mA / 12 V DC

Raksturojums

Tehnoloģija	Dubulta tehnoloģija
Devēja tips	Lauka
Dzīvnieku filtrs	Jā
