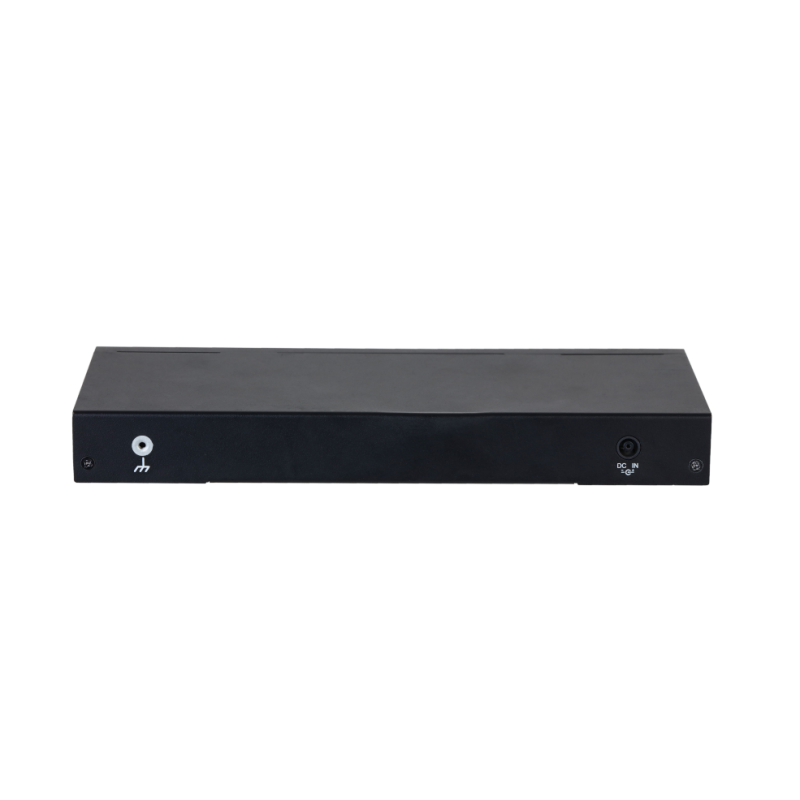

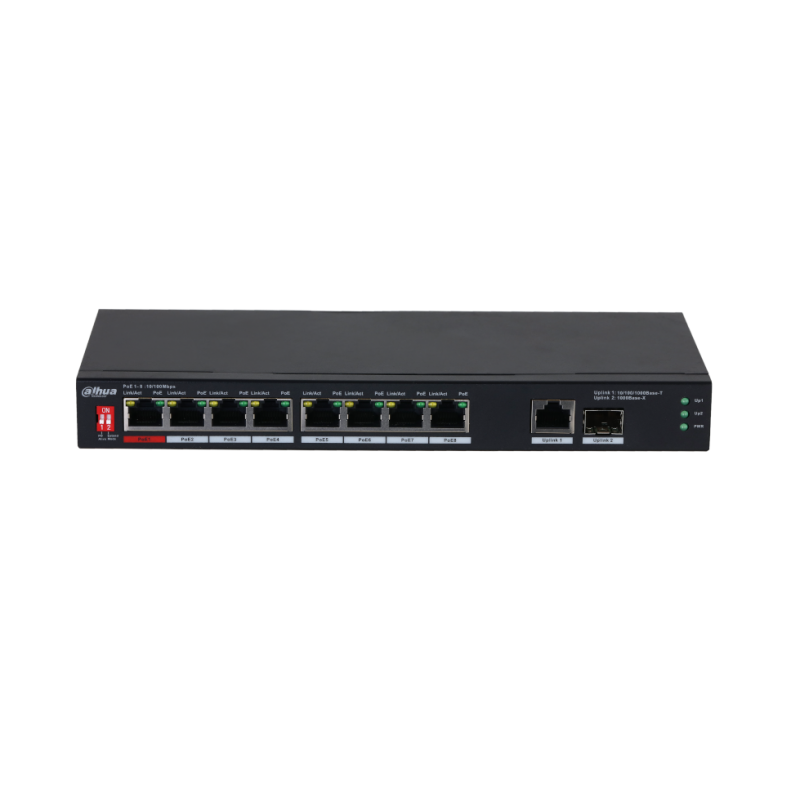

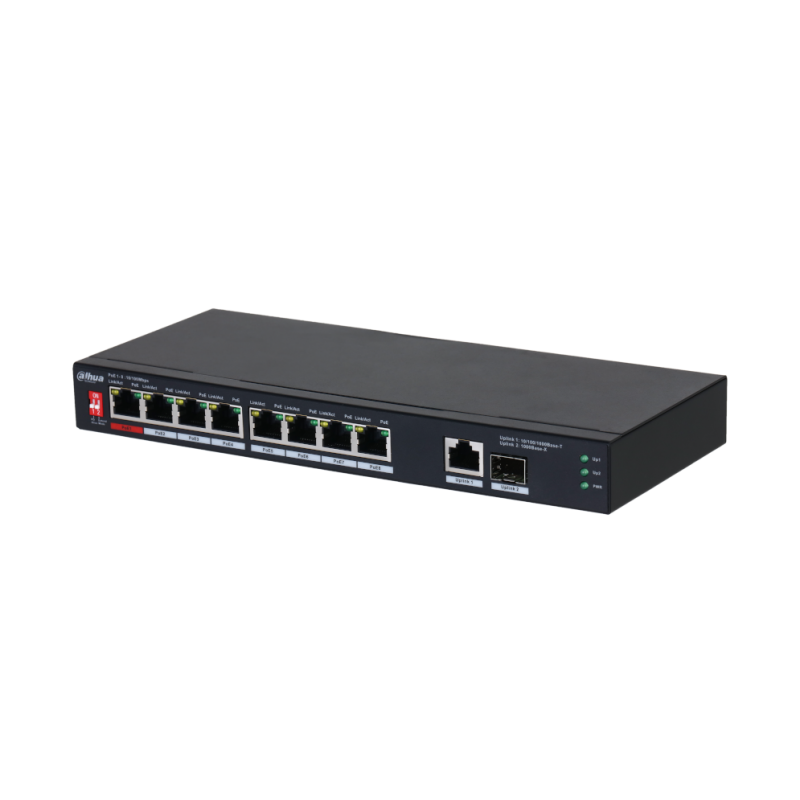

PFS3110-8ET1GT1GF-96 10-Port Unmanaged Desktop Switch with 8-Port PoE

Komutatori

Preces kods: KSPFS3110-8ET1GT1GF9

100 Mbps PoE ports and gigabit uplink ports.
The red port meets the IEEE 802.3bt standard.
Power supply supports up to 90 W.
PoE watchdog monitors the status of terminals in real-time.
Supports 250 m long-distance power supply.
Supports the power management policy.
8-pin PoE offers better compatibility and reduces cable loss.
Durable full-metal housing provides great heat dissipation.

Lasīt vairāk

Cena veikalā var atšķirties

Cena:

€182,71

€151,00 bez PVN

Saglabāt

In manufacturer warehouse
Jautājiet

Preces informācija

PFS3110-8ET1GT1GF-96 10-Port Unmanaged Desktop Switch with 8-Port PoE.

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

Ethernet Port Speed

10/100 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Optical Port Uplink Speed

1 Gbps

Description of Function Slots

Port 1-8: 8 × 10/100 Base-T (PoE)
Uplink 1: 1 × 10/100/1000 Base-T
Uplink 2: 1 × 1000 Base-X

Power Supply

53 VDC, 1.81 A

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH)

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH)

Power Consumption

Idling: 3 W
Full load: 96 W

Performance

Layer

Unmanaged

Management Type

Smart Managed Switch

MTBF

105.24 year

Switching Capacity

5.60 Gbps

Packet Forwarding Rate

4.17 Mpps

Packet Buffer Size

4 Mbit

Jumbo Frame

9K Byte

MAC Table Size

Communication Standard

IEEE802.3; IEEE802.3u; IEEE 802.3ab; IEEE802.3x

PoE

PoE Protocol

IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

PoE Power

Port 2-8 ≤30 W, port 1 ≤90 W, total ≤96 W

PoE Power Consumption Management

Yes

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance PoE Transmission

Yes

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

0.65 kg (1.43 lb)

Gross Weight

1.4 kg (3.09 lb)

Product Dimensions

240 mm × 105 mm × 28 mm (9.45" × 4.13" × 1.10")

Packaging Dimensions

279 mm × 239 mm × 89 mm (10.98" × 9.41" × 3.50")

Casing Material

Metal

Installation

Desktop mount

Certifications

CE; FCC

Installation

Transmission Performance:
Switch power supply voltage 53V. CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
Cable(m)	Load Capacity(W)	Bandwidth(Mbps)
IEEE802.3bt 90 W
100	71.3	100
150	62	10
200	51	10
250	40	10
Hi-PoE 60 W
100	53	100
150	50	10
200	47	10
250	37	10
IEEE802.3at 30 W
100	25.5	100
150	25.5	10
200	25.5	10
250	25.5	10
Note: Data from this table was collected by Dahua test lab and is for reference only . The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.

Raksturojums

Datu caurlaidība	10/100/1000
SFP pievadi	Nėra
Pievadu skaits	10
PoE pievadu skaits	8
