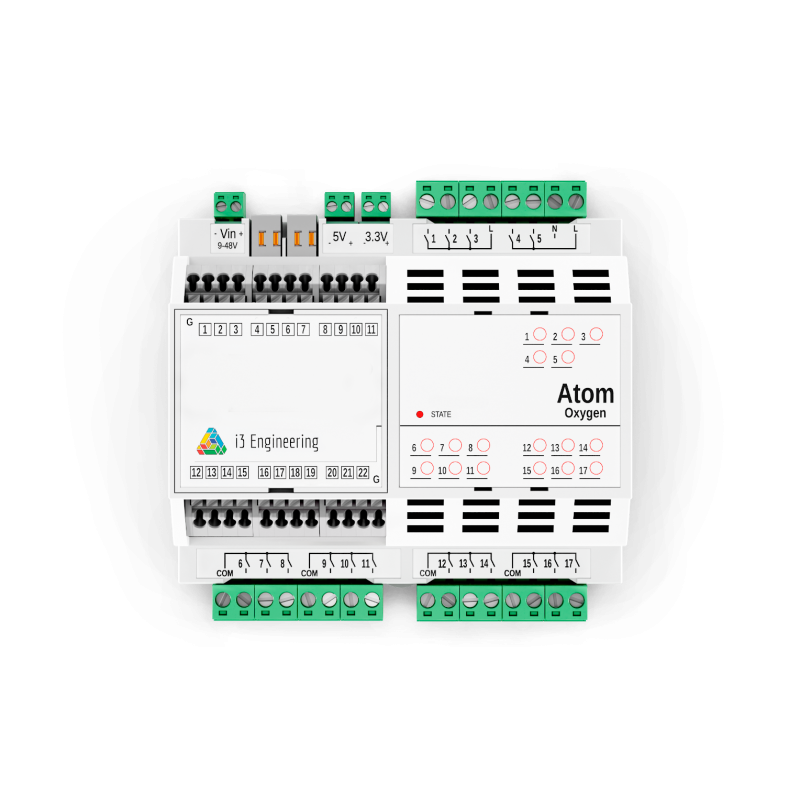

Atom 6U Oxygen Smart Home Controller 12in/10out (perfect for small home)

Kontrolieri

Preces kods: EP6UAtomOxygen

Atom Oxygen Smart home controller is the perfect solution for automating a small home! It will provide control of the climate, lighting and security of your apartment.

Lasīt vairāk

Cena veikalā var atšķirties

Cena:

€705,43

€583,00 bez PVN

Saglabāt

In manufacturer warehouse
Jautājiet

Preces informācija

Atom 6U Oxygen Features:

CAN bus ensures synchronized operation of all Atom series devices.
Integrate 3rd party devices using RS-485 interface.
5V and 3.3V ports for sensors power supply.
22 multifunction input ports (16 in N modification) for temperature, air quality, water leakage sensors and switches connection.
12 x 5A relays for connection of electrical devices
5 x AC dimmers for controlling dimmable lamps

Technical Specifications

Inputs
Input ports	22 digital (9 of them with a possibility to work in analog mode)
Voltage range for input ports	0–3.3V (IN1–IN11), 0–5V (IN12–IN22)
ADC bit rate for input ports in analog mode	12 bit
Outputs 1-5
AC switching voltage	180 - 250VAC
Number of AC ports x Max switching load per one output	5 / 150W
Dimming capabilities	Leading Edge
Outputs 6-17
Number of built-in normally opened relays / Active load	12 x 5А 250V AC
Max inrush current	30А
Interfaces
CAN	✔
RS-485 (Modbus protocol)	✔
Digital interfaces on input ports	1 laidas
Ethernet 10/100 Mb	✖ (in Atom Oxygen N modification)
WiFi 802.11 b/g/n 2,4 GHz	✖ (in Atom Oxygen N modification)
Bluetooth v4.2 BLE	✖ (in Atom Oxygen N modification)
Indication
Input and output ports status LEDs	✔
Ethernet port status LEDs	✖ (in Atom Oxygen N modification)

Power supply

Device power supply voltage (with protection against reverse polarity connection) 9 - 48V DC
Output voltage to power the sensors 3.3V (200mА), 5V (200mА)
Consumption (max) 15W

Other

Mounting type DIN rail (EN 60715)
Width, DIN units 6 DIN module
HxWxL 59 х 88 х 105 mm
Type of connectors / Recommended wire cross section inputs clamps / 0.2 - 1.5 mm²
Type of connectors / Recommended wire cross section outputs w/ screws, detachable/ 2,5 mm²

Atom Oxygen input’s specifications

Type of input / # of input	1-2	3-11	12-16	17-22
Analog (thermistor, photoresistor, etc.)	✖	✔	✖	✖
Digital (motion sensors, light level sensors, switches, buttons, etc.)	✔	✔	✔	✔
Interface (1-Wire sensors)	✔	✔	✖	✖

Atom 6U comparison:

Atom 6U model	IN	OUT	QUANTITIES AND TYPES OF OUTPUTS
Atom 6U Hydrogen	12	10	2 relays, 8 ports, i3 flex	5A 250V/30V DC See "Changeable modules"
Atom 6U Ferrum	12	10	2 relays 8 relays	5A 250V/30V DC 10A 250V AC
Atom 6U Argon	12	18	18 relays	5A 250V/30V DC
Atom 6U Neon	12	12	4 relays 8 dim	5A 250V/30V DC 0-48V DC 5A
Atom 6U Oxygen	22	17	12 relays 5 dim	5A 250V/30V DC 180-250V AC/ 150W

Raksturojums

Kontrollera tips

Atom 6U
