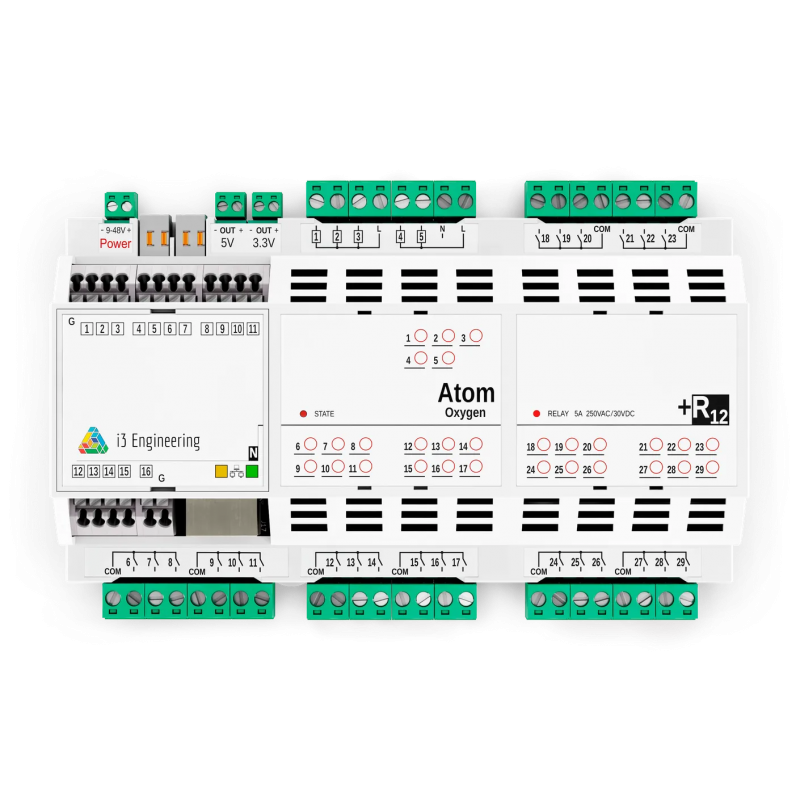

Atom 9U Oxygen N +R12 Smart Home Controller 22IN/29OUT, 5DIMM

Контроллеры

Код товара: EP9UOxygenN+R12

Atom Oxygen N +R12 Smart Home Controller is the perfect solution for automating a small home! It will provide control of the climate, lighting and security of your apartment. With Ehternet port.

Читать подробнее

Цена в физическом магазине может отличаться

Цена:

955,90 €

790,00 € без НДС

Сохранить

In manufacturer warehouse
Спросите

Информация о товаре

Atom 9U Oxygen N +R12 Features:

CAN bus ensures synchronized operation of all Atom series devices.
Integrate 3rd party devices using RS-485 interface.
5V and 3.3V ports for sensors power supply.
16 multifunction input ports for temperature, air quality, water leakage sensors and switches connection.
Ethernet port for network connection possibility of remote control using the phone or voice assistants
12 x 5A relays for connection of electrical devices
5 x AC dimmers for controlling dimmable lamps
12 x 5A relays for connecting electrical appliances

Technical Specifications

Inputs
Input ports	16 digital (9 of them with a possibility to work in analog mode)
Voltage range for input ports	0-3,3V (IN1-IN11), 0-5V (IN12-IN16)
ADC bit rate for input ports in analog mode	12 bit
Outputs 1-5
AC switching voltage	180 - 250VAC
Number of AC ports x Max switching load per one output	5 / 150W
Dimming capabilities	Leading Edge
Outputs 6-17
Number of built-in normally opened relays / Active load	12 x 5А 250V AC
Max inrush current	30А
Outputs 18-29
Number of built-in normally opened relays / Active load	12 x 5А 250V AC
Max inrush current	50A
Interfaces
CAN	✔
RS-485 (Modbus protocol)	✔
Digital interfaces on input ports	1-wire
Ethernet 10/100 Mb	✔
WiFi 802.11 b/g/n 2,4 GHz	✔
Bluetooth v4.2 BLE	✔
Indication
Input and output ports status LEDs	✔
Ethernet port status LEDs	✔

Power supply

Device power supply voltage (with protection against reverse polarity connection) 9 - 48V DC
Output voltage to power the sensors 3.3V (200mА), 5V (200mА)
Consumption (max) 15W

Other

Mounting type DIN rail (EN 60715)
Width, DIN units 9 DIN module
HxWxL 59 х 88 х 161 mm
Type of connectors / Recommended wire cross section inputs clamps / 0.2 - 1.5 mm²
Type of connectors / Recommended wire cross section outputs w/ screws, detachable/ 2,5 mm²

Atom Oxygen N +R12 input’s specifications

Type of input / # of input	1-2	3-11	12-16
Analog (thermistor, photoresistor, etc.)	✖	✔	✖
Digital (motion sensors, light level sensors, switches, buttons, etc.)	✔	✔	✔
Interface (1-Wire sensors)	✔	✔	✖

Atom 9U comparison:

Model	IN	OUT	QUANTITIES AND TYPES OF OUTPUTS
Ferrum +R12	22	22	8 relays, 14 relays	10A 250V AC 5A 250V AC / 30V DC
Argon +R12	22	30	30 relays	5A 250V AC / 30V DC
Neon +R12	22	24	16 relays, 8 dimm	5A 250V/30V DC 0-48V DC / 5A
Oxygen +DCD12	22	29	12 relays, 5 dimm 12 dimm	5A 250V AC / 30V DC 180–250V AC / 150W 0–48V DC / 4A
Oxygen +R12	22	29	24 relays 5 dimm	5A 250V AC / 30V DC 180–250V AC / 150W
