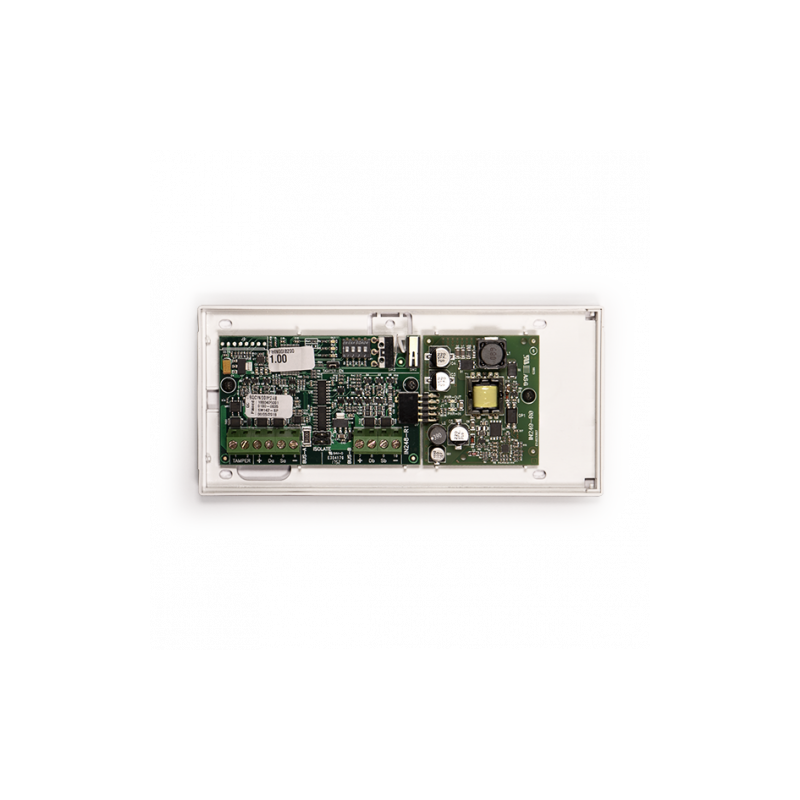

IB200/A BUS isolator with data and power-supply regeneration + tamper

Piederumi

Preces kods: CEIB200A

BUS isolator with data and power-supply regeneration and tamper protection.

Lasīt vairāk

Mums ir 0 gab.
Piegāde 4-8 d.
Jautājiet

Preces informācija

IB200/A BUS isolator with data and power-supply regeneration and tamper protection

The enhanced version, IB200/A, protects and regenerates the BUS data signals and its power supply. Using an isolator limits BUS trouble caused by eventual anomaly (short-circuit, tamper) to the isolator-protected section and simplifies identification of it the section involved. As a result of the regeneration feature, fitting an isolator to the BUS also allows you to extend its length.

The IB200/A is also useful safeguard against acts of vandalism acts to peripherals located in non-protected areas. If a peripheral is damaged and the operating capacity of the BUS is at risk, the isolator, installed in the protected area will guarantee the functionality of the rest of the system.

Main features
	IB200/U	IB200/P	IB200/A
Cable length downstream of the isolator (L)	500 m @ 38.4 Kbps 350 m @ 125 Kbps 200 m @ 250 Kbps	500 m @ 38.4 Kbps 350 m @ 125 Kbps 200 m @ 250 Kbps	500 m @ 38.4 Kbps 350 m @ 125 Kbps 200 m @ 250 Kbps
Maximum number of isolators in cascade	9 @ 38.4 Kbps 6 @ 125 Kbps 2 @ 250 Kbps	9 @ 38.4 Kbps 6 @ 125 Kbps 2 @ 250 Kbps	9 @ 38.4 Kbps 6 @ 125 Kbps 2 @ 250 Kbps
Galvanic isolation of data (D, S)	Yes	Yes	Yes
Regeneration of data signals (D, S)	Yes	Yes	Yes
Tamper signaling	-	Yes	Yes
I-BUS analysis function	Yes	Yes	Yes
Address programmable (for firmware upgrading)	Yes	Yes	Yes
Galvanic isolation of power supply (+, -)	Configurable	Configurable	Yes
Regenerated voltage of BUS power supply	-	-	Yes
Regenerated voltage of BUS power supply adjustable from 12 to 16 Vdc)	-	-	13,8 Vdc
Maximum regenerated current (@13.8Vdc)	-	-	1000 mA
Permitted interval of input voltage	-	-	8-16 Vdc
Dimensions (HxWxD)	59x108x20 mm	80x126x27 mm	171x80x27 mm
Weight	60 g	100 g	170 g
