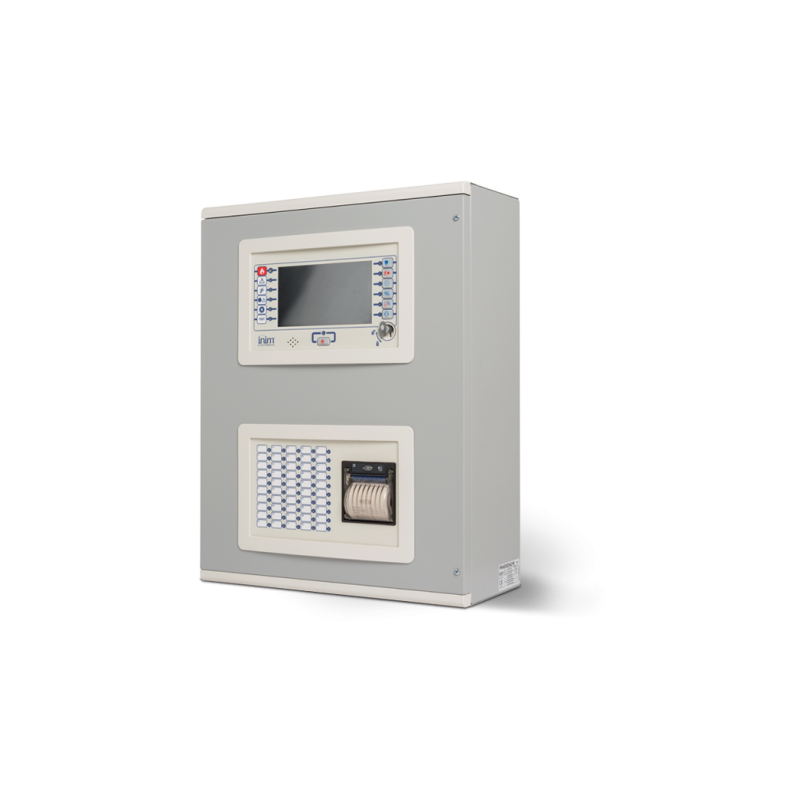

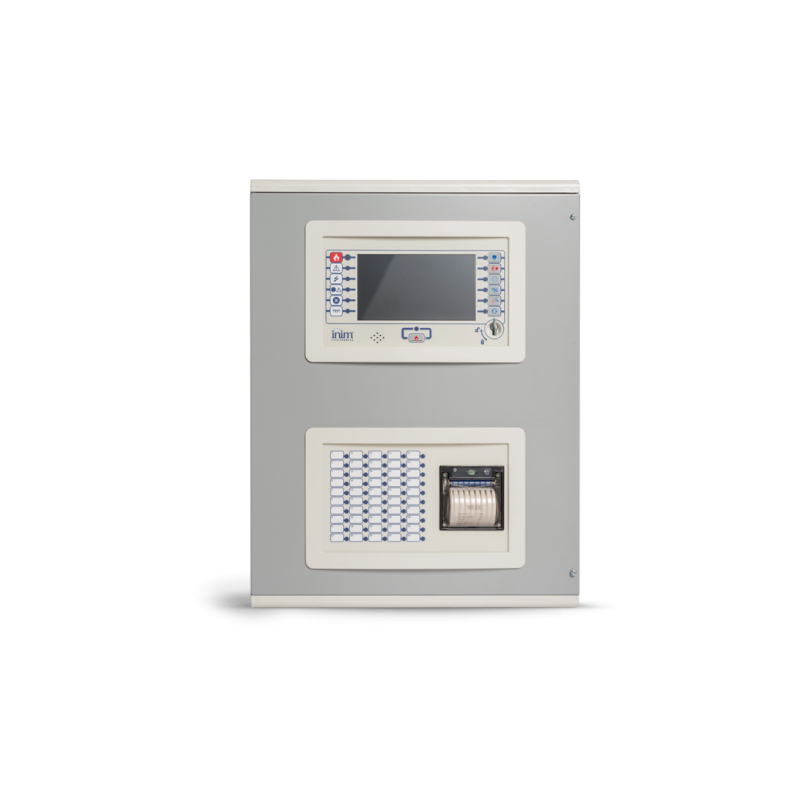

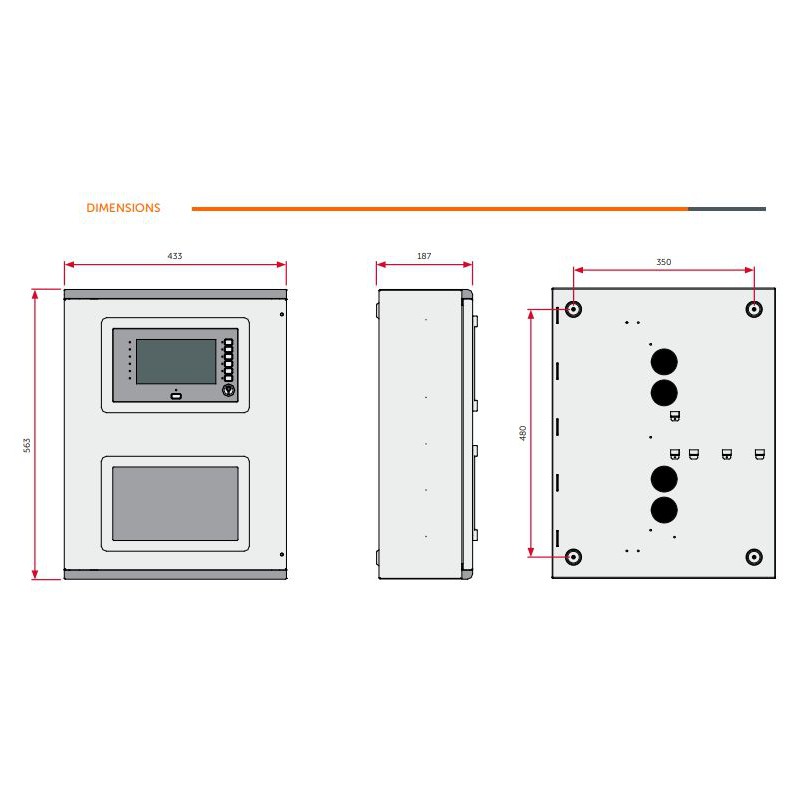

Adresinė priešgaisrinė centralė PREVIDIA MAX

PREVIDIA centrāles un to piederumi
Preces kods: PSPRAE216
  • 2 kilpų adresinė priešgaisrinė centralė;
  • plečiama iki 16 kilpų;
  • Sistema plečiama nuo vieno pagrindinio iki 4 pultų po 8 modulius per CAN-BUS sąsaja;
  • Modulinė sistema palaiko greito įrenginių keitimo "Hot-Swap" funkciją;
  • Klaviatūra ir jutiklinis  spalvotas ekranas;
  • Pranešimų susiejimas su vaizdine medžiaga iš IP video kamerų.
  • vieta dviems 17Ah, 12V akumuliatoriams;
  • Maitinimas: 230V~ (+10% - 15%)
Lasīt vairāk
Saglabāt

Preces informācija

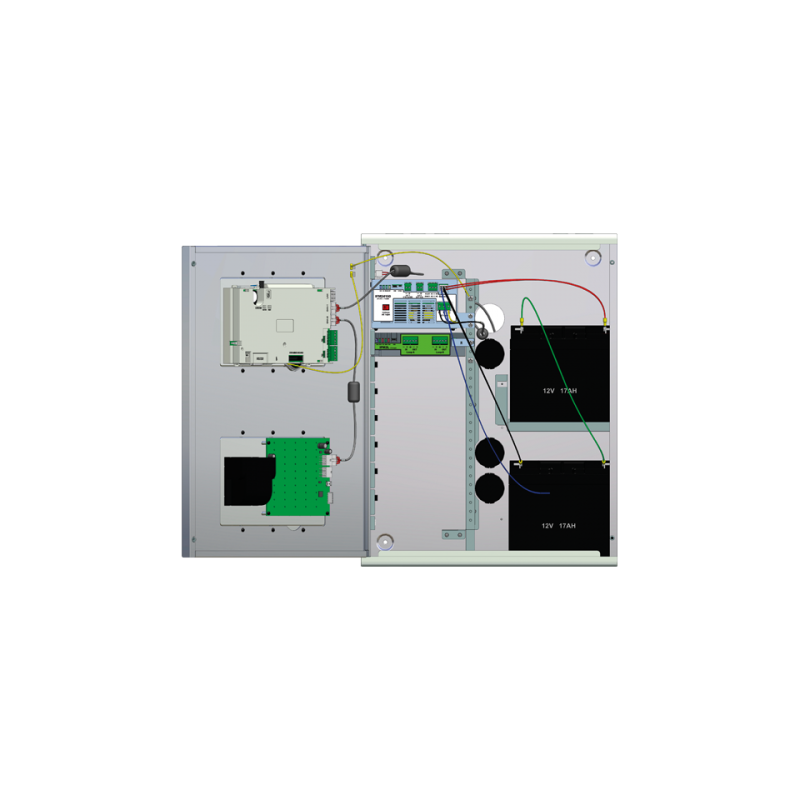

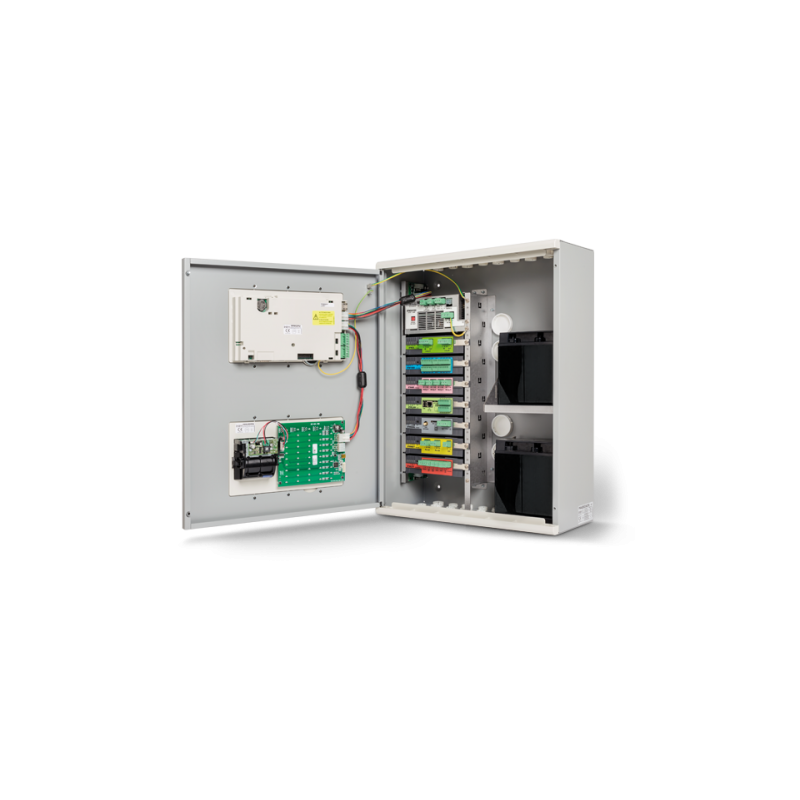

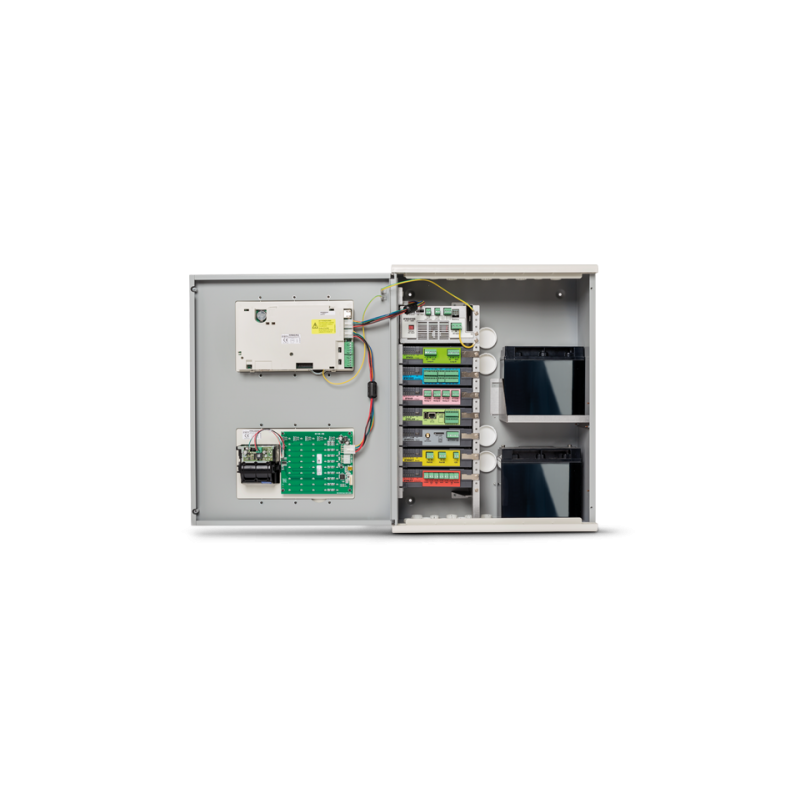

Bazinė sudėtis:

  • Metalinė dėžė;
  • FPMCPU module - valdymo panelė su displėjumi;
  • IFM24160 - 4A maitinimo šaltinis su baterijos krovimo funkcija;
  • IFM2L - 2 kilpų valdymo modulis;
  • FPMNUL - Plastikinis dangtelis.

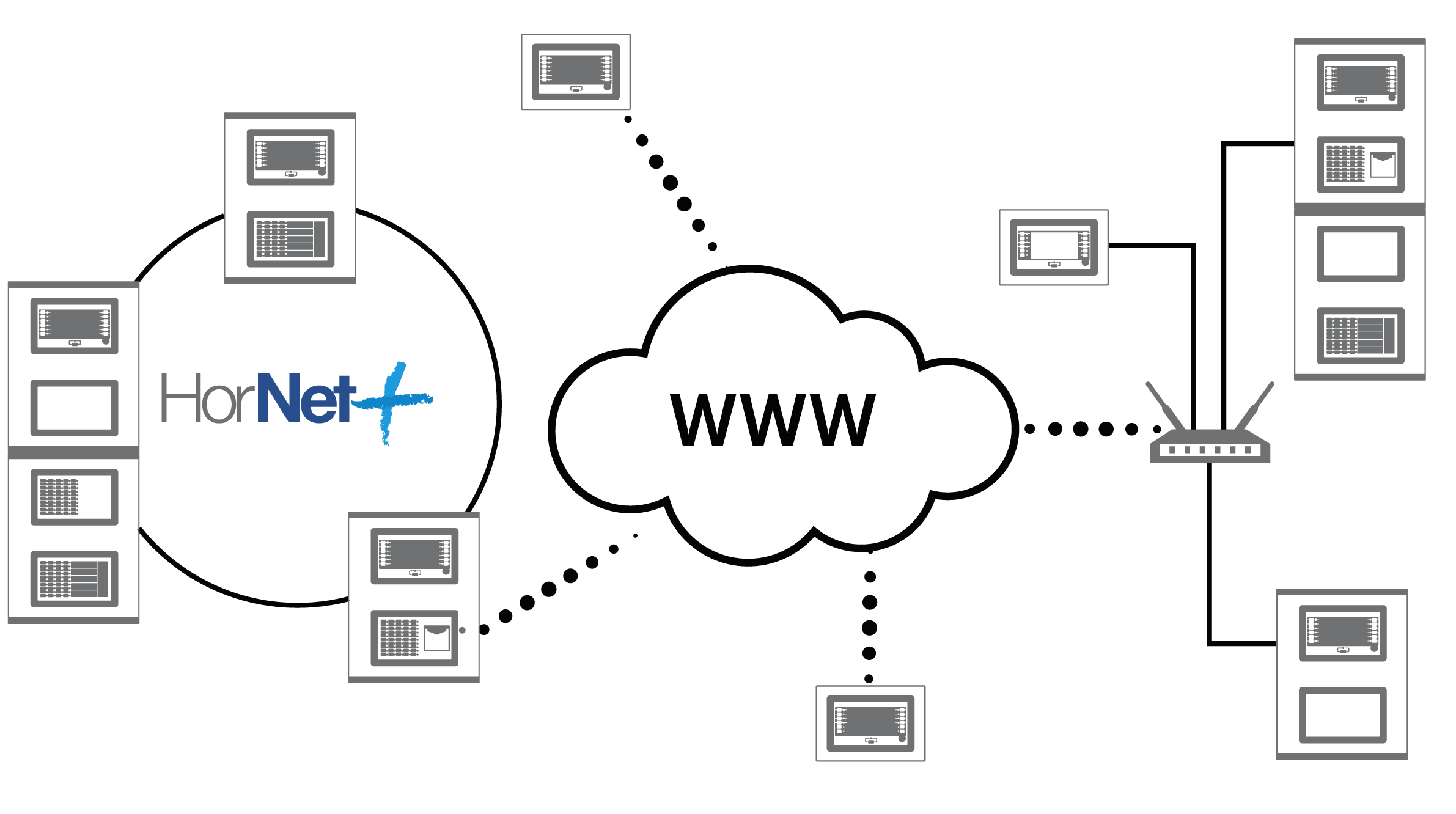

 Control Panels in an IP network

Komplektuojamų dalių sąrašas:

ORDER CODES

Previdia216: analog addressable control panel with 2 loops expandable to 16

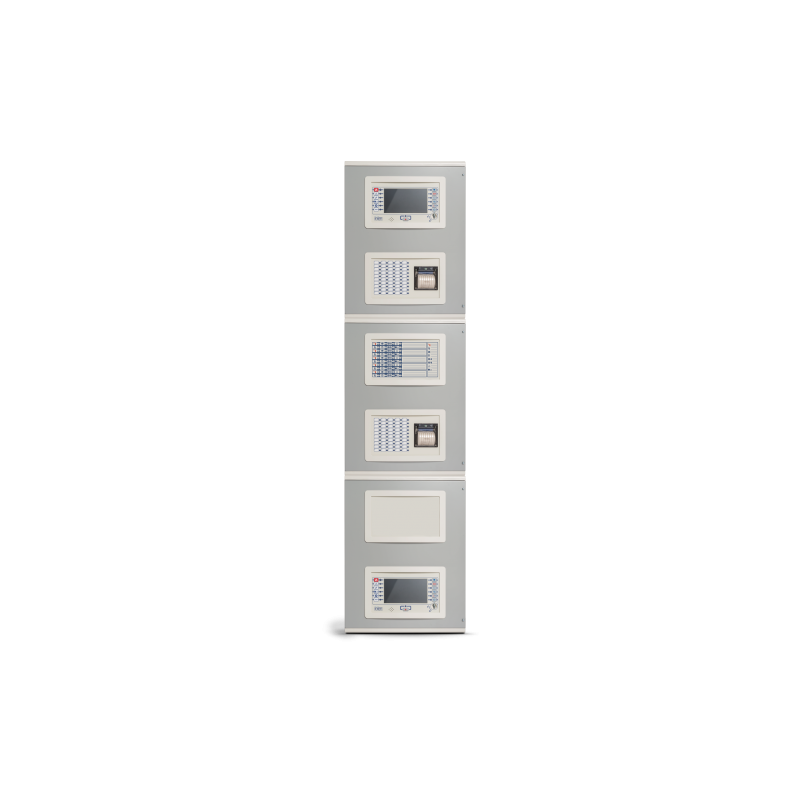

PRCAB: add-on cabinet

 FPM front-plate modules

FPMNUL (max. 7): plastic support (provide no functions other than support)

FPMLED (max. 7): module with 50 programmable indicator LEDs

FPMLEDPRN (max. 1): module with 50 programmable indicator LEDs complete thermal printer

FPMEXT (max. 5): module for signals relating to extinction channels

FPMCPU (max. 1 as back-up): CPU module which can be programmed as a repeater, reserve CPU or main CPU

IFM internal modules

IFM24160 (max. 4): power-supply module IFM2L (max. 8): 2 loop module

IFM4R (max. 16): 4 relay module IFM4IO (max. 16): module with 4 programmable terminals

IFMDIAL (max. 1): communicator module over PSTN or GSM line

IFM16IO (max. 4): module with 16 inputs/outputs

IFMNET (max. 1): module for the connection of control panels in a Hornet+ network

IFMLAN (max. 1): module for the management of advanced services over TCP-IP

IFMEXT (max. 24): gas extinguishment-system management module

Accessories

PRCABSP: spacer bracket for mounting the cabinet to wall

PRCABSPR as per item PRCABSP but in red

PRCABRK: bracket for mounting the cabinet to a 19’’ rack

PRREP: enclosure for mounting FPMCPU module as remote repeater

GSM-ANT100B: high performance GSM antenna, white

GSM-ANT200N: GSM antenna with installation bracket and 3mt cable, black

PRBAC: BACNET IP licence (requires IFMLAN)



Raksturojums

Adrešu skaits 240
Cilpu skaits 2-16
Centrāles tips Moduļu

Dokumenti / sertifikāti

Ražotājs

Inim develops state-of-the-art systems for antintrusion, fire detection, home automation and emergency lighting. Integrated systems of the newest design that protect and control automatically residential, commercial and institutional buildings. Inim innovates to simplify the life of the installer and the end-user by means of devices that are both easy to install and use. From design to production, from testing to marketing, every Inim product is made in Italy to be appreciated in the world.
